Quick Details

  • Condition: New
  • Usage: Soybean Oil
  • Type: Cold & Hot Pressing Machine
  • Automatic Grade: Semi-Automatic
  • Production Capacity: 160-200kgs/hour
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: New Elephants
  • Model Number: 6YL-100
  • Voltage: 220V/380V
  • Power(W): 7.5kw
  • Dimension(L*W*H): 1920*550*765(mm)
  • Weight: 480kgs
  • Certification: SGS,CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Function: hot press and cold press can get edible oil
  • Color: Blue,green and you love color
  • Brand name: New Elephants
  • Warranty time: One year
  • packing: plywood carton or as your request
  • Material: The carbon steel /stainless steel
  • Business Type: Manufacturer and trader
  • Processing Types: Edible Oil Processing Line
  • Suitable for: Crude vegetable,sunflowr seeds,peanuts etc.
  • factory: offer spare parts all year

Packaging & Delivery

Packaging Details Fumigation-free wooden cases and ply wooden cases with the transportation standard
Delivery Time Shipped in 15 days after payment
Product Description



Product  Description:
New Elephants 6YL series soybean screw oil press
Model:6YL-100 screw oil press machine
Input capacity:160-200kgs/hour
Power:7.5kw,380V,50HZ,3Phase
Weight:480kgs
Dimension:1920*550*765(mm)
Delivery time:15-20 days

Working Principle:



When oil press is operating ,prepared materials enter the es-truding chamber from the hopper and then moves forwards by the rotating pressing screwed and is pressed .Under the high pressure will be created ,which also creates friction and relative movement amon material particles.



 On the other hand ,root diameter of the pressing screw varies larger from one end to the other hence ,when rotating ,it not only pushes paritcles moving but turns them outwards as well.Meanwhile particles adjacent the screw will rotate along with screw's rotating ,causing every particle insides the chamber to posses differernt speed.



Therefore ,relative movement among particles creates heat which is necessery duting manufacturing because of helping protein change properly ,damage col-loid ,increase plasticity ,decrease oil,elasticity ,resulting in high oil productivity.



The machine suitable vegetable seeds:



Product parameter:



ModelCapacityPowerWeightDimension
6YL-100

160-200(kgs/hour)

7.5kw

480kg1920*550*765(mm)

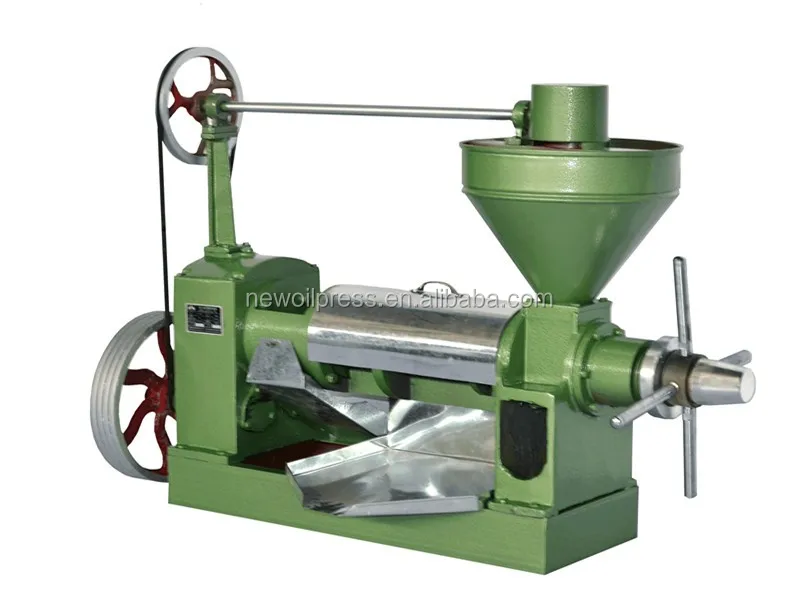

Product picture:



Product press oil quality:(crude oil and filter oil)



Our product main features:

1:High production capacity, the operation continuity is strong, fast and convenient

2:it can convenient operation, low noise, meet the needs of family environment

3:The product is pure,rich nutrition and purely physical squeezing ,safety and health

Packaging & Shipping



Packaging:fumigationfree wooden cases and ply wooden cases with the transportation standard.

Our Services



1. We supply spare parts all year around.

2. We supply technical solutions and helps for buyers at any time.

3. Have designers to help construct oil factory

4.Our warranty time is one year.

5.Our company provide match equipment if you want hot press.



Company Information



                  Henan New Elephants Machinery Co,Ltd



Established in 1970s, Henan New Elephants Machinery Co., Ltd. is a professional manufacturer that product various types of oil presses,oilrefining plant and other agricultural machinery.We provide various choices for different size of oil processing workshop.



With advanced technology and rich experience ,our products have benn well sold both at home and abroad and enjoyed a high reputation from our clients.we have complete set of fully automatic oil pressing equipment with capacity or 5,10,15,or 20 tons.such as 6YLseries are state-patented producted products and reach the international technical level.



We guarantee higher quality and better service, and sincerely hope we could be your sincere long-term partner.



Our factory show:

Our exhibition picture:



Our certificate picture:

Our company features:



1:We are a company specialized in producing machinery in oil processing area with more than 40 years experience.

2:We have certification of CE and ISO9001

3:We are professional in making all these kind of agriculture machines with more that 10 senior technical engineer.



Our company other product :



Model6YL-806YL-956YL-105A6YL-120A
Capacity80-125(kgs/hour)160-200(kgs/hour)200-230(kgs/hour)250(kgs/hour)
Power5.5kw7.5kw1.5kw+7.5kw1.5kw+15kw
Weight130kgs480kgs1200kgs1300kgs





FAQ







1:how do I pay for my purchase?

T/T,L/C at sight.

2:What’s the delivery time?

15 work days

3:Can I have my own customised product?

Yes, Your customised requirement for color.

4:How to contact us?

You can contact us by telephone and e-mail.

5:How to operation the machine?

when you pay it for the machine,we will product and install these machine,we will debug machine,and guarantee it operation.





please contact us if you have any need and questions about oil press machine
